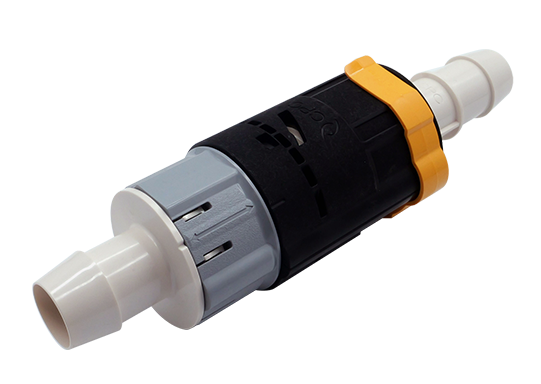

RevolveSD™
Sterile Disconnects
RevolveSD™
Sterile Disconnects
.jpg.thumb.1280.1280.png)
.jpg.thumb.1280.1280.png)
.jpg.thumb.1280.1280.png)
.jpg.thumb.1280.1280.png)
.jpg.thumb.1280.1280.png)
Spec Sheet
OPERATING PRESSURE |
|
|---|---|
|
Connected: |
Up to 60 psi (4.1 bar), Up to 75 psi (5.17) bar for 48 hours |
|
Disconnected: |
Up to 10 psi, 0.7 bar |
FLOW PATH MATERIALS |
|
|---|---|
|
Main Components: |
Polyphenylsulfone (off white) |
|
O-Rings: |
Silicone (clear), platinum-cured |
STERILIZATION |
|
|---|---|
|
Gamma: |
Up to 50kGy irradiation. |
|
Autoclave: |
One cycle up to 266°F (130°C) for 60 minutes, one cycle |
OTHER MATERIALS |
|
|---|---|
|
Shell: |
Polyvinylidene fluoride (black) |
|
Housing: |
Polycarbonate (gray) |
|
Protective Tab: |
Polycarbonate (gold) |
OTHER |
|
|---|---|
|
Termination Size: |
3/4" and 1" Hose Barb |
OPERATING TEMPERATURE |
|
|---|---|
|
34°F to 104°F (1°C to 40°C) |
WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.
Spec Sheet
OPERATING PRESSURE |
|
|---|---|
|
Connected: |
Up to 60 psi (4.1 bar), Up to 75 psi (5.17) bar for 48 hours |
|
Disconnected: |
Up to 10 psi, 0.7 bar |
FLOW PATH MATERIALS |
|
|---|---|
|
Main Components: |
Polyphenylsulfone (off white) |
|
O-Rings: |
Silicone (clear), platinum-cured |
STERILIZATION |
|
|---|---|
|
Gamma: |
Up to 50kGy irradiation. |
|
Autoclave: |
One cycle up to 266°F (130°C) for 60 minutes, one cycle |
OTHER MATERIALS |
|
|---|---|
|
Shell: |
Polyvinylidene fluoride (black) |
|
Housing: |
Polycarbonate (gray) |
|
Protective Tab: |
Polycarbonate (gold) |
OTHER |
|
|---|---|
|
Termination Size: |
3/4" and 1" Hose Barb |
OPERATING TEMPERATURE |
|
|---|---|
|
34°F to 104°F (1°C to 40°C) |
WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.
